Auto plate edge milling machine, Auto plate beveling machine

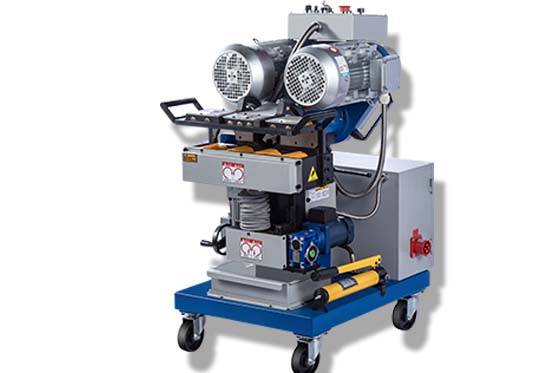

GMMA-80A Edge milling machine technical parameters
Power Supply：AC 380V 50HZ
Total Power：4920W
Spindle Speed：500~1050r/min
Feed Speed：0~1500mm/min（According to bevel depth and material）
Clamp Thickness：6~80mm
Clamp Width：＞80mm (Not processing edge)
Processing Length：＞300mm
Bevel Angle：0°~60°Adjustable
Single Bevel Width：0~20mm（Change according to material and angle）
Bevel Width：0~70mm（Change according to bevel angle）
Cutter Plate：φ80 mm
Cutter Qty：6pcs
Worktable Height：700~760mm
Travel Space：800*800mm
Net Weight：245kg
Gross Weight：280kg
Package Size：800*690*1140mm
