Max. bevel: 110mm, Bevel angle is 0 ~ 90 degrees, there is no step adjustment, and the feed speed is 0 ~ 1500mm / min

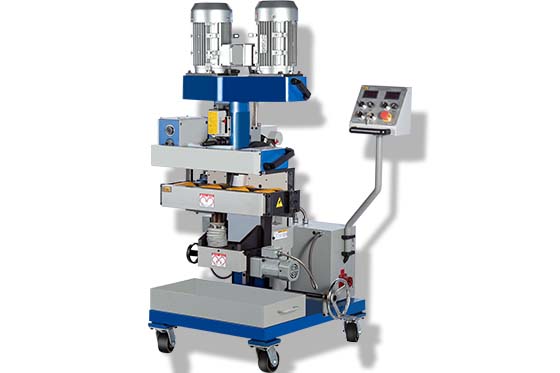

GMMA-100L Edge milling machine technical parameters
Power Supply：AC 380V 50HZ
Total Power：6520W
Spindle Speed：500~1050r/min
Feed Speed：0~1500mm/min（According to bevel depth and material）
Clamp Thickness：8~100mm
Clamp Width：≥100mm (Not processing edge)
Processing Length：＞300mm
Bevel Angle：0°~90°Adjustable
Single Bevel Width：0~30mm（Change according to material and angle）
Bevel Width：0~100mm（Change according to bevel angle）
Cutter Plate：φ100 mm
Cutter Qty：7/9pcs
Worktable Height：810~870mm
Travel Space：1200*1200mm
Net Weight：420kg
Gross Weight：480kg
Package Size：950*1180*1430mm
From: GIRET CNC edge milling machine and Beveling machine
