H-beam rounding machine, H-beam chamfered edge machine, H-beam bevelling machine, H-shaped steel processing R3 or R2
GCM-8R3-F8-H type H-beam rounding machine, H-beam chamfered edge machine, H-beam bevelling machine

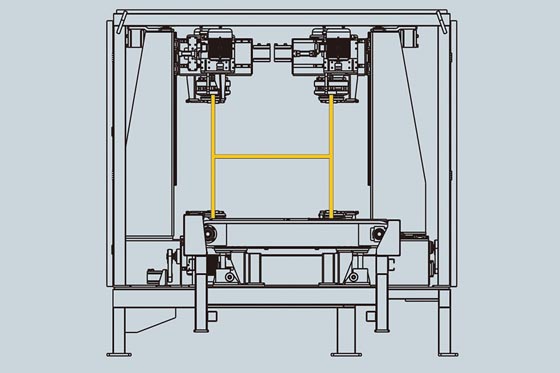

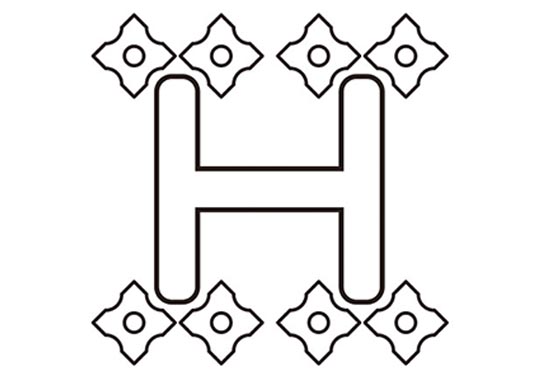

GCM series chamfering machine products have developed suitable products for curved arc chamfering and linear plate arc chamfering. With the continuous improvement of steel structure customers' requirements for arc chamfering, more and more customers attach importance to H-shaped steel chamfering. Therefore, we have developed arc chamfering equipment using H-shaped steel flange plates. The speed of this H-shaped steel chamfering machine reaches 4000mm/min, and the circular arc chamfering operation can be completed for 8 edges without turning over the workpiece.
GCM-8R3-F8-H type H-beam rounding machine, H-beam chamfered edge machine, H-beam bevelling machine technical parameters:
Power supply: AC80V 50HZ
Total Power: 22000W
H-shaped steel height: 200~800m
H-shaped steel flange plate width: 150~800mm
H-shaped steel flange plate thickness: 8~40mm
Processing capacity for arc: R2/R3
Bevel angle:45 degree
Bevel capacity: C1~C3
H-shaped steel length: 3000~12000mm

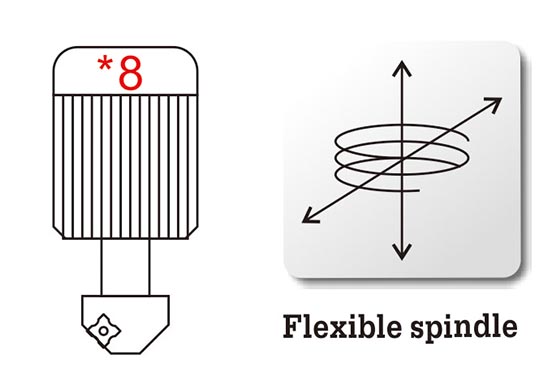

Cutter spindle qty: 8pcs Flexible cutting spindle
Feed speed: 0~6000mm/min
Worktable size: 1500*3000mm
Worktable height: 1180mm
Machine size: 8000*3500*1800mm
