Feed speed 0~4m/mikn, Double spindle toghter processing R3, cold cutting.
GCM-R3TD Chamfered edge machine powe Technical parameters:
Power Supply：AC380V 50HZ
Gas Source：0.5~0.8Mpa
Total Power：1900W
Spindle Speed：2800r/min
GCM-R3TD Chamfered edge machine processing Technical parameters
Clamping Thickness：8~60mm
Clamping Width:＞100mm
Processing Length：＞300mm

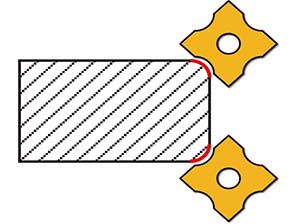

Processing Capacity：C2/C3/R3/R2
Cutter Diameter：2*φ60mm
Cutter Qty：2*3pcs
Worktable Height：800~860mm
Area Covered：1200*900mm
