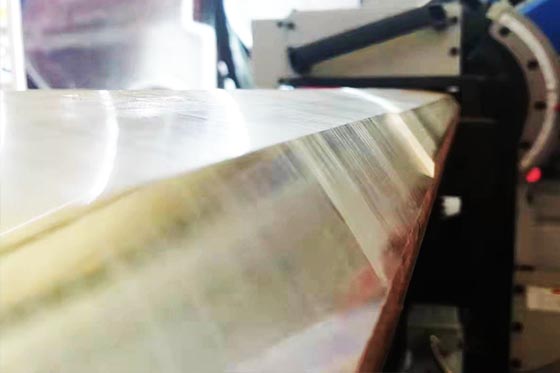

Double spindle toghter processing plate bevel, cold cutting, feed speed:0~1500mm/min
GMMA-100K Edge milling machine power data:
Power Supply：AC 380V 50HZ
Total Power：6480W
Cutting Power：2*3000W
Feed Motor：2*180W
GMMA-100K Edge milling machine technical parameters
Spindle Speed：500~1050r/min
Feed Speed：0~1500mm/min（According to bevel depth and material）
Clamp Thickness：6~100mm
Clamp Width：≥100mm (Not processing edge)
Processing Length：≥400mm
Single Bevel Width：0~20mm （Change according to material and angle）
Above Angle：0°~90° Adjustable
Under Angle：0°~-45°Adjustable
Above Bevel Width：0~60mm（Change according to bevel angle）
Under Bevel Width：0~45mm（Change according to bevel angle）
Cutter Plate：2*φ63mm
Cutter Qty：2*6pcs
Worktable Height：810~870mm
Travel Space：800*800mm
Net Weight：395kg
Gross Weight：460kg
Package Size：950*1180*1430mm
