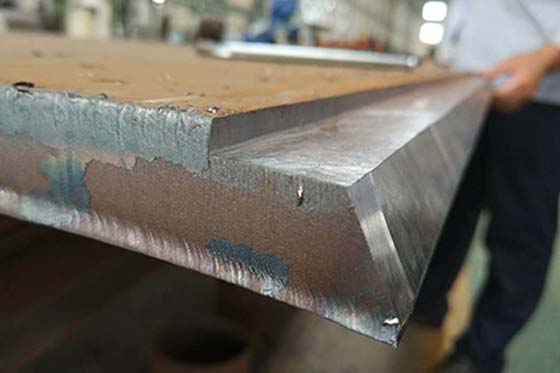

Bevel angle:0 to 90degree adjustable, bevel width: 45mm， feed speed:0~1500mm/min

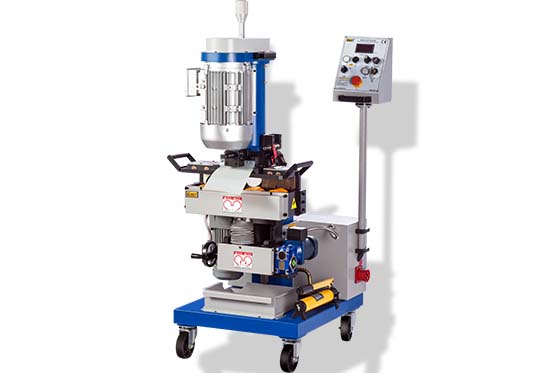

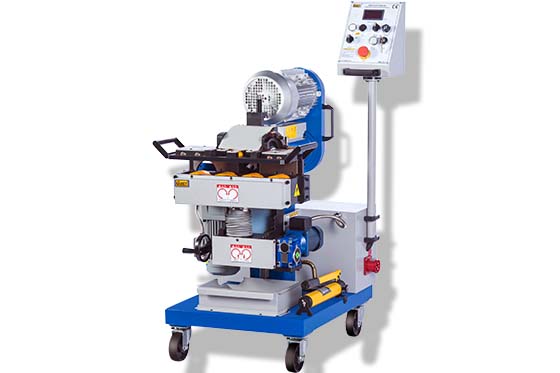

GMMA-60L Plate Edge milling machine technical parameters:
Power Supply：AC 380V 50HZ
Total Power：4520W
Spindle Speed：1050r/min
Feed Speed：0~1500mm/min（According to bevel depth and material）
Clamp Thickness：6~60mm
Clamp Width：＞80mm (Not processing edge)
Processing Length：＞300mm
Bevel Angle：0°~90°Adjustable
Single Bevel Width：0~20mm（According to bevel angle and material）
Bevel Width：0~60mm（Change according to bevel angle）
Cutter Plate：φ63mm
Cutter Qty：6pcs
Worktable Height：700~760mm
Travel Space：800*800mm
Net Weight：225kg
Gross Weight：260kg
Package Size：950*700*1230mm
